As smartphone performance continues to improve, with increasingly powerful processors and slimmer designs, thermal management has become a crucial aspect of device design. Effective heat dissipation solutions ensure stable device operation, extend component lifespan, and enhance user experience. NFION thermal gel, with its excellent thermal conductivity, softness, and filling capability, is widely used in smartphones and other electronic devices.This article explores in detail the application of NFION thermal gel in smartphones and its key roles.
The Necessity of Thermal Management in Smartphones
1. Heat Accumulation from High-Performance Demands
With rising smartphone performance and diverse application scenarios, especially in high-load activities like gaming, video playback, and photography processing, processors and other components rapidly generate heat. If this heat is not efficiently dissipated, it can cause component temperatures to rise, reducing operating efficiency and even damaging components, thus affecting the phone's overall lifespan.
2. Slim Design Requirements for Thermal Management Materials
Modern smartphones emphasize a slim design, leaving extremely limited internal space. This poses higher demands on the shape, thickness, softness, and thermal conductivity of heat dissipation materials. Traditional thermal materials such as thermal grease and copper sheets struggle to meet these stringent requirements, whereas thermal gel, with its excellent thermal conductivity and flexibility, has become the ideal choice for smartphone manufacturers.
Characteristics and Advantages of NFION Thermal Gel

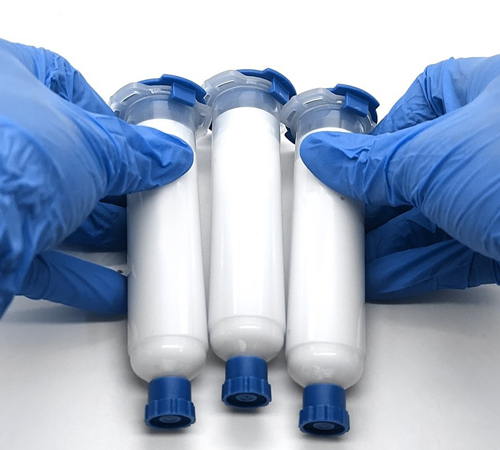

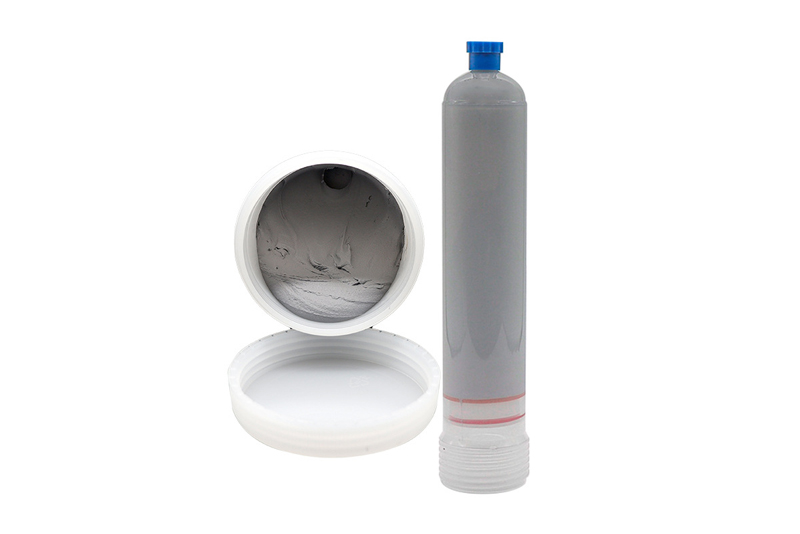

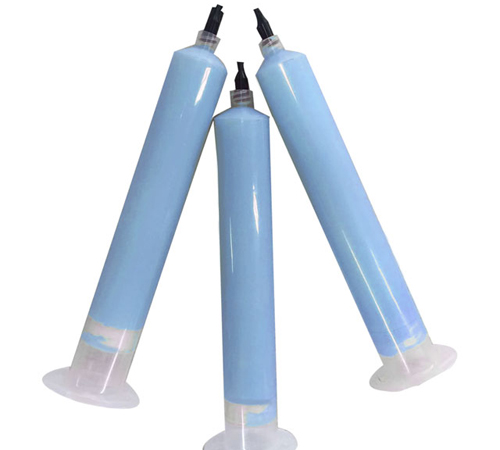

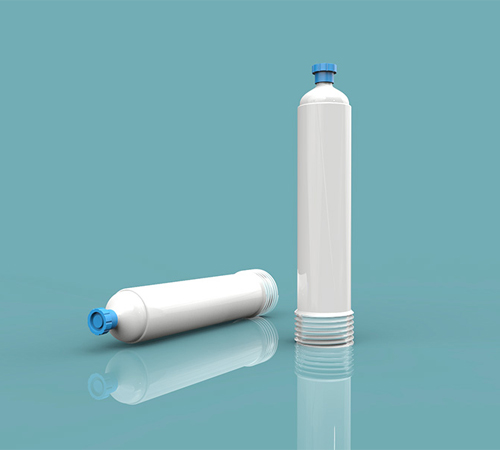

NFION thermal gel, as a high-performance thermal management material, exhibits unique characteristics, making it highly effective for thermal management in smartphones:
1. High Thermal Conductivity
NFION thermal gel has a high thermal conductivity, effectively transferring the heat generated by electronic components to the heat sink, lowering component surface temperature, and ensuring efficient and stable device operation.
2. Good Filling Properties
With excellent softness and flowability, thermal gel can thoroughly fill irregular gaps inside smartphones, effectively reducing interface thermal resistance and improving heat transfer efficiency. Compared to traditional thermal pads or thermal grease, thermal gel ensures a tighter fit between components, enhancing cooling performance.
3. Resistance to Extreme Temperatures and Long-Term Stability
NFION thermal gel maintains its physical and chemical properties within a wide temperature range of -40°C to 200°C, resisting aging, leaking, or deformation. This stability ensures long-lasting thermal performance throughout the smartphone's lifecycle, reducing maintenance needs.
4. Outstanding Electrical Insulation
Smartphones incorporate high-density layouts with multiple circuits, where thermal materials lacking electrical insulation may lead to short circuits or signal interference. NFION thermal gel, with excellent electrical insulation, effectively prevents electrical failure issues, providing added safety protection for the device.
Application Scenarios of NFION Thermal Gel in Smartphones

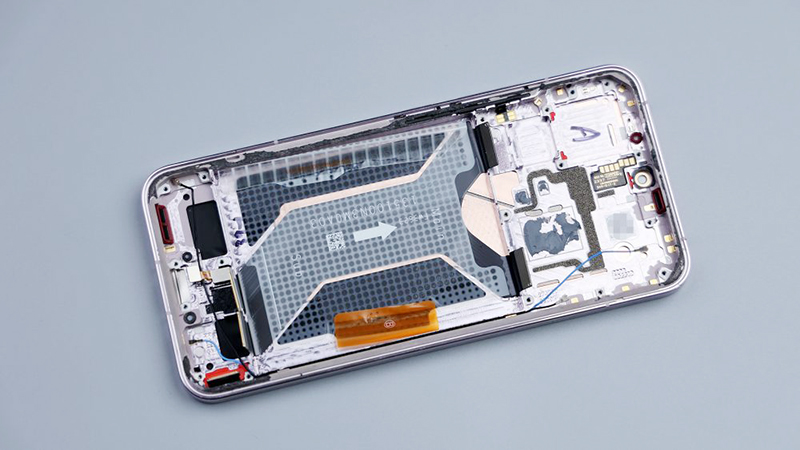

1. Thermal Interface between Processor and Heat Sink

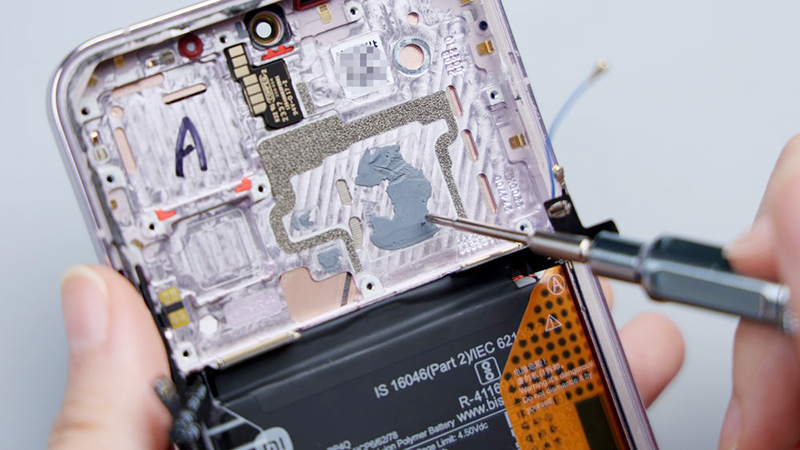

In smartphones, the processor (CPU/GPU) is often the primary heat source. NFION thermal gel can serve as an interface material between the processor and the heat sink, filling tiny gaps between the two, reducing interface thermal resistance, and rapidly transferring heat to the heat sink, effectively preventing performance degradation due to processor overheating.
2. Thermal Management between Battery and Shell
During charging and discharging, batteries generate heat, and smartphone casings are often part of the heat dissipation pathway. Applying thermal gel between the battery and casing enables efficient heat transfer to the casing, preventing battery overheating, extending battery life, and reducing safety risks.
3. Thermal Management for 5G Antenna Modules
With the widespread adoption of 5G technology, antenna modules have significantly increased power consumption, resulting in greater heat dissipation requirements. NFION thermal gel, due to its excellent thermal conductivity and insulation, is applied in the thermal management of 5G antenna modules, ensuring stable temperature and performance during high-frequency signal transmission.
4. Thermal Management for Camera Modules and Sensors
Smartphone camera modules and sensors are highly sensitive to temperature changes. Through efficient heat dissipation, thermal gel helps maintain optimal operating temperatures for camera modules and sensors, avoiding issues such as reduced image quality or sensor inaccuracies due to overheating.
Advantages of Applying NFION Thermal Gel
1. Extends Device Lifespan
The high thermal conductivity of NFION thermal gel reduces accelerated aging of electronic components due to overheating, effectively extending the smartphone's overall lifespan and improving device reliability.
2. Enhances User Experience
By enabling effective thermal management, NFION thermal gel can prevent smartphones from overheating during high-load use, improving the sustained usage experience and avoiding issues like lagging or throttling.
3. Improves Device Safety
Applying thermal gel between smartphone batteries and other sensitive components helps efficiently transfer heat, reducing temperature buildup risks and enhancing device safety, thus minimizing potential failures due to high temperatures.
Conclusion
With the trends toward high performance and compact design in smartphones, thermal management technology is becoming increasingly critical. NFION thermal gel, as an efficient thermal material, meets the strict requirements for heat dissipation solutions in smartphones due to its excellent thermal conductivity, filling capability, long-term stability, and electrical insulation. Not only does it effectively lower component temperatures and ensure stable device operation, but it also extends device lifespan and provides a better user experience. In the future, NFION will continue to optimize thermal gel technology, supporting the development and innovation of the smartphone industry and providing users with outstanding thermal management solutions.
