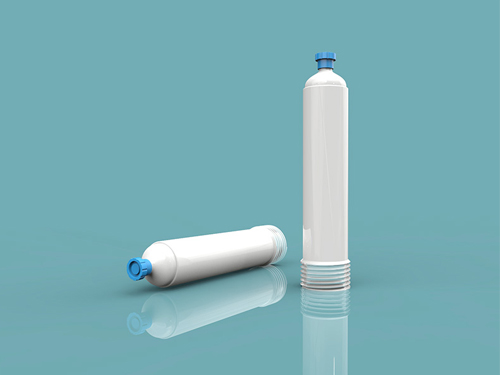

6.5W/M.K One-part Thermal Conductive Gel-NFION

Introduction

NFION 6.5W/M.K One-part Thermal Gel represents the pinnacle of thermal management solutions for advanced electronic applications. It excels in dissipating heat efficiently, addressing critical thermal challenges in high-power devices. This gel ensures exceptional reliability and longevity, optimizing device performance under extreme conditions.

Features

● Outstanding Thermal Conductivity: With a thermal conductivity of 6.5W/M.K, this gel enables rapid and efficient heat transfer, essential for demanding electronic components.

● Single-component Design: Simplifies application without the need for mixing, reducing application time and potential errors.

● High Thermal Stability: Maintains peak performance across a broad temperature range, ensuring reliable operation in diverse environments.

● Low Thermal Resistance: Minimizes thermal resistance at interfaces, maximizing heat dissipation efficiency between components and heatsinks.

● Safe and Non-toxic: Non-corrosive and safe for sensitive electronic applications, ensuring reliability without health risks.

Application method

● Precision Automated Dispensing: Compatible with automated dispensing systems for accurate and efficient application in high-volume manufacturing.

● Manual Application: Can be applied using dispensing tools or spatulas for smaller-scale or customized applications.

● Immediate Use: Ready for immediate application, eliminating the need for curing time and facilitating rapid deployment.

● Reworkable: Easily removable and reapplicable without compromising performance, allowing for adjustments as needed.

Application

● High-Performance Computing: Ideal for cooling CPUs, GPUs, and server components in data centers and high-performance computing environments.
● Telecommunications: Suitable for base stations, routers, and telecommunications equipment requiring effective thermal management.
● Automotive Electronics: Perfect for electric vehicle powertrains, battery systems, and other automotive electronics demanding superior heat dissipation.
● Industrial Applications: Applicable in power supplies, motor drives, and industrial equipment where thermal management is critical for operational efficiency and reliability.
● LED Lighting: Ensures efficient heat dissipation in high-intensity LED applications, enhancing performance and extending product lifespan.

Specification

Feature	Value	Unit	Test Method
Thermal Conductivity	6.5(±0.3)	W/m·K	ASTM D5470
Thermal Impedance	≤0.5	℃-in²/W	ASTM D5470
Color	Grey	--	Visual
Viscosity	85*10⁴	mPa.s@25℃	Rheometer DHR-2
Density	3.4(±0.5)	g/cc	ASTM D792
Extrusion Speed	20	g	g/min(50Mpa)
Extrusion Speed	30	g	g/min(100Mpa)
Flammability Rating	V-0	--	UL 94
Working Temperature	-50~160	℃	IEC 60068-2-14
Breakdown Voltage	≥7	Kv/mm	ASTM D149
Volume Resistivity	≥1.0*10¹¹	Ω·cm	ASTM D257
