NFION 1.5mm Thermal Pad Solves Industrial Camera Heat Transfer Challenges
Author：NFION Thermal
Date：2025-05-28 15:26:55
With the continuous upgrade of industrial automation and intelligent manufacturing, industrial cameras—as the core component of high-precision visual recognition systems—play a crucial role in the overall performance of the equipment. However, with the increasing integration of image sensors and high-performance image processing chips, the heat generation has significantly intensified, making thermal management a growing concern.
To tackle this challenge, NFION has introduced a thermal pad with a thermal conductivity of 10W/m·K and a thickness of 1.5mm, specifically designed to solve the heat transfer issues of high-temperature components inside industrial cameras, ensuring stable performance even under high workloads.
I. Heat Transfer Challenges in Industrial Cameras Should Not Be Overlooked

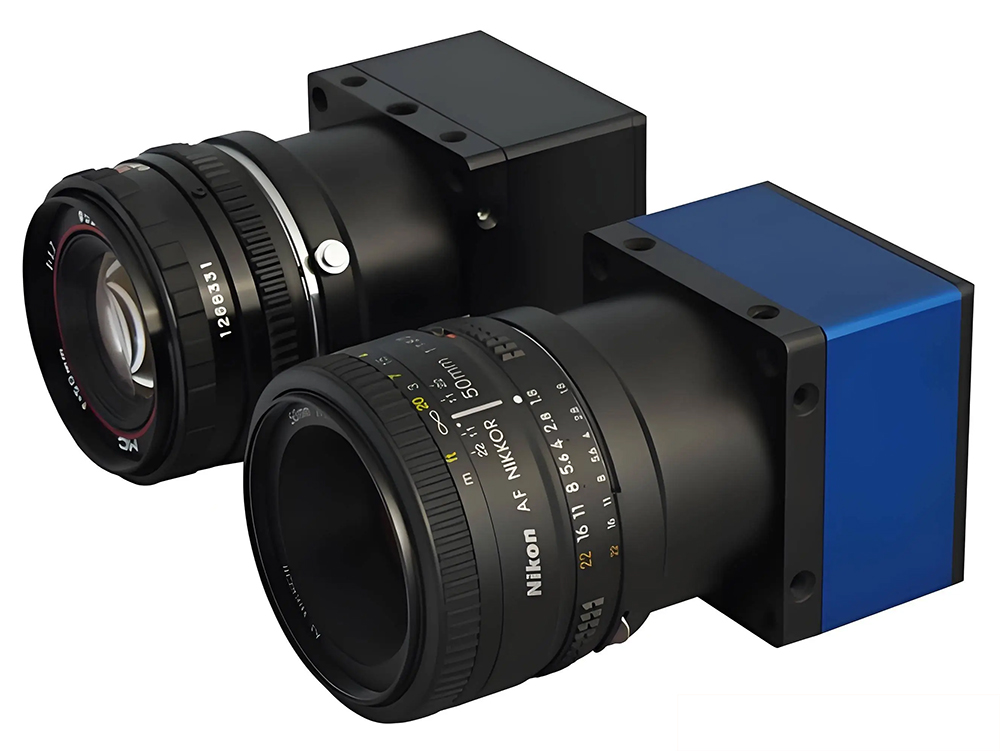

Industrial cameras are widely used in defect detection, object recognition, and positioning guidance. During long-term, high-frequency operation, they face significant thermal stress challenges:
● Concentrated power consumption: Image processors and sensors are heat-intensive, often creating local hot spots.
● Limited dissipation paths: Compact metal housings restrict the use of traditional heat sinks, making heat release difficult.
● Harsh environments: High temperatures, dust, and extended operating hours demand greater reliability from materials.
Therefore, selecting high-performance Thermal Interface Materials (TIMs) is key to improving heat transfer efficiency and enhancing system stability.
II. Advantages of NFION 10W/m·K 1.5mm Thermal Pad
Tailored for compact structures, concentrated heat, and short thermal paths in industrial cameras, NFION’s thermal pad offers outstanding thermal performance, flexibility, and reliability. Key advantages include:
1. Ultra-High Thermal Conductivity for Rapid Heat Transfer
With a conductivity of 10W/m·K—considered high among TIMs—this pad significantly shortens thermal paths and lowers operating temperatures of chips and sensors, extending device lifespan.
2. 1.5mm Thickness for Perfect Gap Filling
Designed to fill uneven gaps between structural parts, the 1.5mm thickness also provides cushioning protection and accommodates varying assembly tolerances across different camera models.
3. Soft and Compressible for Enhanced Conformability
The pad's softness ensures full contact with heat sources under low pressure, maintaining continuous and efficient heat flow.
4. Outstanding Reliability for Industrial Scenarios
Excellent resistance to high temperatures and aging—maintains stable performance in environments from -40°C to +180°C, ideal for demanding industrial use.
5. Eco-Friendly and Globally Compliant
RoHS and REACH certified, free from toxic and hazardous substances, meeting global environmental and safety standards.
III. Typical Application Areas in Industrial Cameras

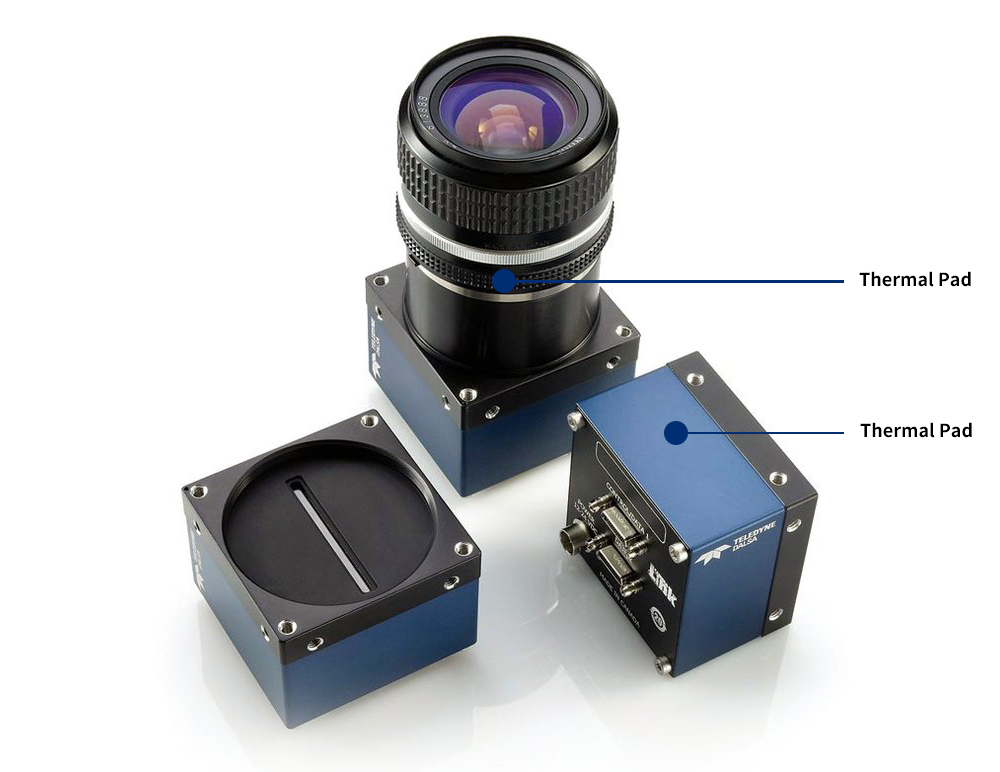

In industrial cameras, NFION’s 10W/m·K thermal pad is typically applied between heat sources and the casing in the following areas:
● Image sensor chips
● Image processing chips (DSP, FPGA)
● High-speed memory (e.g., DDR)
● High-speed interface controllers (USB 3.0, GigE chips)
By efficiently filling gaps and conducting heat, the pad significantly enhances thermal cycle efficiency, ensuring image processing precision and long-term system stability.
> Customer Case Study
> A leading domestic industrial vision equipment manufacturer applied NFION’s 10W/m·K 1.5mm thermal pad in its high-frame-rate camera series. Results showed a temperature drop of 15°C on the image processing module’s surface, 24-hour continuous operation without overheating alarms, reduced return rates, and improved customer satisfaction.
IV. Why Choose NFION Thermal Materials?
NFION specializes in high-performance electronic thermal interface materials, serving hundreds of clients in the industrial, communications, and automotive electronics sectors. With an independent R&D lab and production facility, our product portfolio includes:
● Thermal Pads
● Thermal Gels
● Thermal Grease
● Thermal Insulation Sheets
● Thermal Adhesives
● Thermal Potting Compounds
We offer not only standard products, but also custom solutions in size, performance, and thickness based on your equipment structure and application environment.
V. Conclusion: Cooling for Vision Systems, Elevating Long-Term Value
As industrial camera resolutions and data processing capabilities continue to grow, internal heat loads are rising in tandem. Without effective thermal management, systems risk performance degradation, image distortion, and hardware failure.
NFION’s 10W/m·K 1.5mm thermal pad offers a forward-looking solution to these challenges. With excellent heat conductivity, structural adaptability, and environmental durability, it is an indispensable cooling component for high-end industrial cameras.
Contact NFION to get a customized thermal solution and keep your devices cool under pressure.
