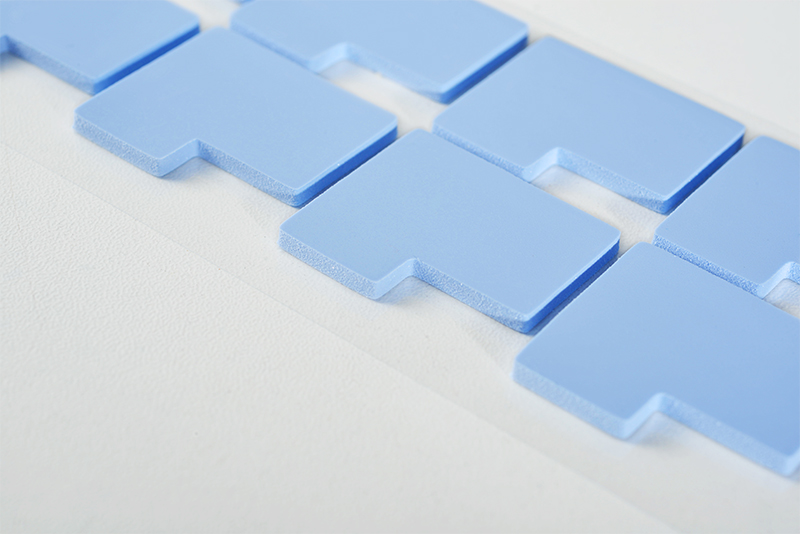

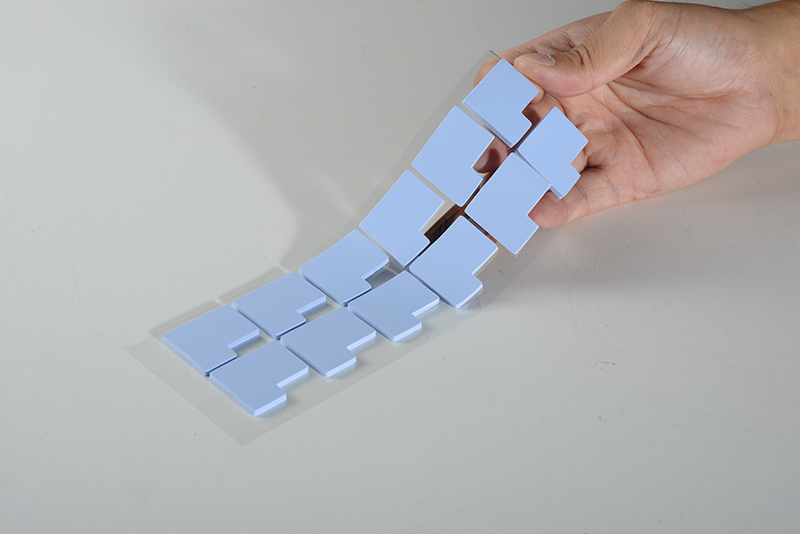

In the field of electronic devices and electrical engineering, thermal conductive silicone pads are essential for heat dissipation due to their excellent thermal conductivity and flexibility. Hardness measurement is a key parameter to ensure the performance of these pads meets specific application needs. Shore hardness is commonly used to express this, with Shore 00 and Shore C being the typical scales for thermal conductive silicone pads. This article explores the differences between Shore 00 and Shore C hardness to help readers better understand and select the appropriate thermal conductive silicone pad.
Introduction to Shore Hardness

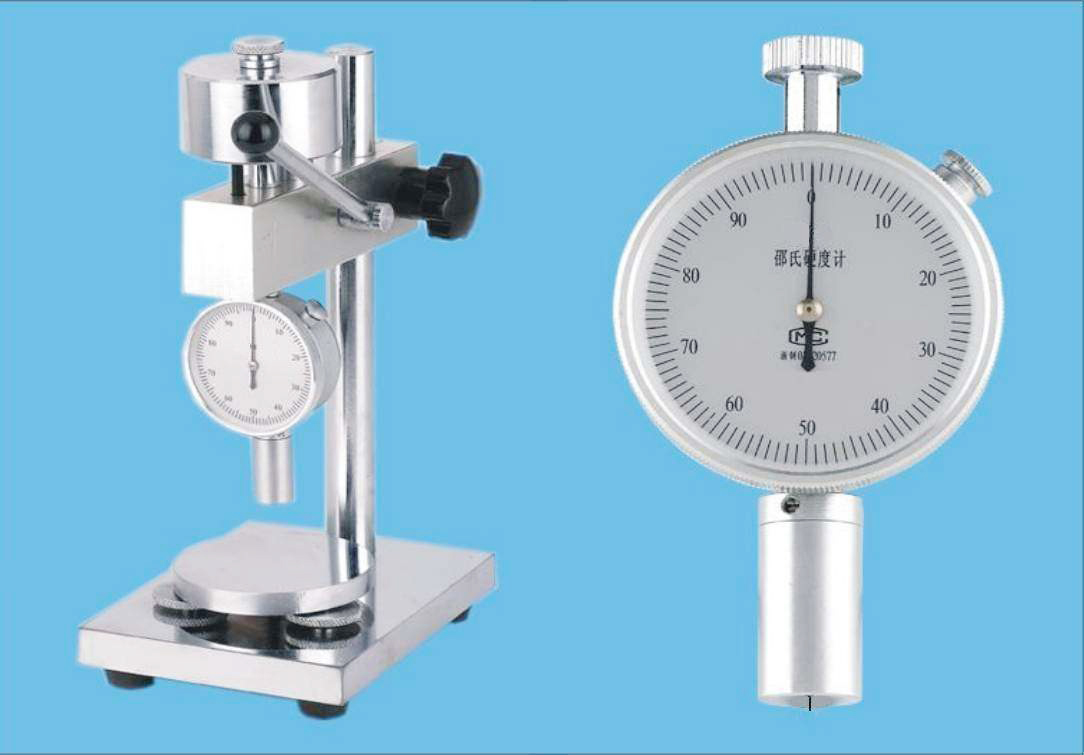

Shore hardness, invented by Albert Shore, measures the hardness of materials such as rubber and plastics. It has various scales for different materials, with Shore A and Shore D for harder materials, and Shore 00 and Shore C for softer ones.
Shore 00 Hardness
Shore 00 hardness measures very soft materials like soft rubber, gels, and silicone. It uses a larger diameter and lower load indenter to measure material deformation. Shore 00 hardness values range from 0 to 100, with higher values indicating harder materials.
Thermal conductive silicone pads with Shore 00 hardness are suitable for applications requiring high flexibility and good contact under low pressure, such as in smartphones and tablets.
Shore C Hardness
Shore C hardness measures moderately hard soft materials, including medium-hard rubber and silicone. It uses a smaller diameter and higher load indenter.
Thermal conductive silicone pads with Shore C hardness are used in applications needing to maintain shape and thermal performance under higher compression, such as industrial equipment and high-performance cooling systems.
Comparison between Shore 00 and Shore C Hardness
1. Application Range:
● Shore 00: Suitable for very soft materials, ideal for low-pressure applications.
● Shore C: Suitable for medium-hard soft materials, ideal for high-compression applications.
2. Measurement Method:
● Shore 00: Uses a larger diameter and lower load indenter.
● Shore C: Uses a smaller diameter and higher load indenter.
3. Application Scenarios:
● Shore 00: Used in consumer electronics requiring high flexibility.
● Shore C: Used in industrial equipment and servers requiring high compression resistance.
Choosing the Appropriate Hardness for Thermal Conductive Silicone Pads
When selecting thermal conductive silicone pads, hardness is a crucial factor. Choosing the right hardness ensures the material's performance and longevity while optimizing heat dissipation. Consider the following when making a choice:
1. Working Environment: Consider the device's operating temperature, pressure, and environmental conditions.
2. Contact Surface Characteristics: Different surfaces may require different hardness pads to ensure good thermal conduction.
3. Heat Dissipation Requirements: Select the appropriate hardness based on the device's power consumption and heat dissipation needs.
Conclusion
Shore 00 and Shore C hardness each have unique characteristics and application ranges in thermal conductive silicone pads. Understanding and choosing the appropriate hardness scale can ensure optimal performance in specific applications. Whether it's the highly flexible Shore 00 or the high compression resistance of Shore C, selecting the right hardness is crucial for enhancing the heat management of electronic devices. This article aims to help readers better understand the differences between Shore 00 and Shore C hardness and make informed choices in practical applications.
