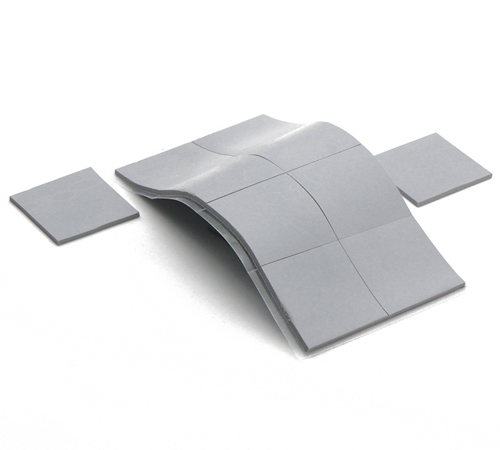

4.0W/M.K Silicone Thermal Pad

Product No:NF150-400
Thermal Conductivity: 4.0W/M.K
Working Temperature: -40-200℃
Thickness: 0.4-10MM or Customized
Hardness:20-50 shore C
Flaming Rating: UL94 V-0
Certificates: RoHS, UL, Reach, SGS, CTI, TS16949,ISO9001

Introduction

The most crucial goal in electronic cooling is to keep the junction temperature from exceeding certain limits.NF150-400 thermal silicone pads (thermal conductivity 4.0W/M.K) are used to bridge the interface between hot components and a chassis or heat sink assembly to increase the overall heat transfer from the system. The unique combination of high thermal conductivity and softness of NF150-400 thermal silicone pads and other thermal interface material products reduces mechanical stress while maintaining thermal performance.

Contact us for more information on how Nfion gap fillers and thermal interface materials can improve the efficacy of your next project, or call us at 400-716-0881, and we will gladly answer your questions. Nfion is your trusted supplier of gap filler and thermal interface material solutions.

Features

Good insulation

Soft and conformable

High-temperature tolerance

High thermal conductivity

Good dielectric properties

Good wettability for improved and lower thermal resistance

Application

LED, Netcom,Consumer electronic,Computer,new energy vehicles,Battery,Power,Home appliance,Monitor system,medical equipment,Cosmetology equipment,Optical module,5g communication,cloud computing and big data,aerospace,military others.

Specification

Testing Item	Testing Value	Testing Method
Thickness(MM)	0.4-10MM or Customized	ASTM D374
Components	Silicone Rubber &Ceramics	--
Colour	Grey or Customized	Visual
Hardness (Shore C)	20-50	ASTM D2240
Density(G/M³)	3.1±0.1	ASTM D792
Tensile Strength(KN/M)	0.1	ASTM D412
Extensibility(%)	50	ASTM D374
Working Temperature(℃)	-40~200	EN344
Breakdown Voltage(KV)	>7	ASTM D149
Volume Resistivity(Ω·CM)	1.5×10¹¹	ASTM D257
Dielectric Constant(@1MHz)	7.4	ASTM D150
Weight Loss ratio (%)	<2	@200℃240H
Flaming Rating	V-0	UL-94
Thermal Conductivity(W/M.K)	4.0	ASTM D5470
1:The data of conductive interface sheet is just for reference. 2:Different thermal conductive pad has different application areas, 3.Any application solution question,welcome to check with our team. 4 Sheet size&shape can be cut as customized. 5.Adhesive and reinforce fiberglass can be added as requested.
