NF150-300 thermal pad material: The Ideal Solution for Industrial Camera Heat Dissipation
In the realm of modern industrial automation, industrial cameras serve as the core components of machine vision systems, known for their high precision and efficiency. However, as industrial cameras become more integrated and powerful, their internal power consumption increases, bringing forth prominent heat dissipation challenges. High temperatures not only affect the stability of camera operation and the lifespan of image sensors but can also lead to data drift, increased image noise, and even equipment damage, severely restricting the long-term reliable operation of industrial cameras.
Industrial Camera Heat Dissipation Challenges: High Temperatures are Performance "Killers"
When industrial cameras operate for extended periods or in high-temperature environments, core heat-generating components such as CMOS/CCD image sensors, FPGAs, and DSPs produce a significant amount of heat. If this heat isn't effectively dissipated in a timely manner, the internal temperature of the camera will continue to rise.
▪ Performance Degradation: High temperatures significantly increase the dark current of image sensors, leading to a deterioration in the image signal-to-noise ratio, affecting image quality and measurement accuracy.
▪ Reduced Lifespan: Prolonged exposure to high-temperature environments accelerates the aging of electronic components, shortening the lifespan of industrial cameras and increasing maintenance costs and downtime risks for businesses.
▪ Stability Issues: Excessive temperatures can cause camera operation to become unstable, leading to freezing, crashes, or even intermittent failures, impacting the continuity of production lines.
Traditional heat dissipation solutions, such as heat sinks and fans, often prove insufficient when faced with the trend towards miniaturization and high integration of industrial cameras. They may occupy valuable internal space or be susceptible to dust and oil contamination in harsh industrial environments, leading to reduced heat dissipation efficiency. Therefore, finding an efficient, reliable, and adaptable thermal management material has become crucial.
NF150-300 thermal pad material: Designed for Industrial Camera Heat Dissipation
Addressing the stringent heat dissipation requirements of industrial cameras, the NF150-300 thermal pad material has emerged as an ideal solution, thanks to its outstanding thermal conductivity and excellent mechanical properties.
The NF150-300 thermal pad material is a high-performance thermal interface material. Its core advantages include:

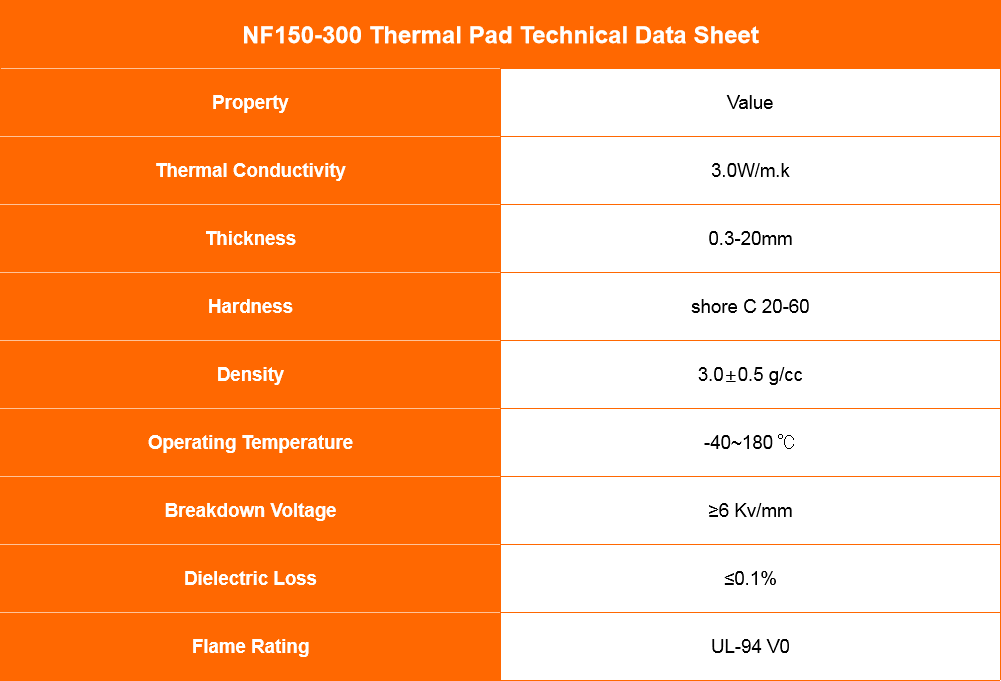

▪ High Thermal Conductivity: The NF150-300 boasts excellent thermal conductivity, up to 3.0 W/m·K, enabling efficient transfer of heat from heat sources (such as image sensors and processors) to heat sinks or the camera casing. This significantly reduces the operating temperature of components.
▪ Excellent Gap Filling Capability: The surfaces of internal components in industrial cameras are often not perfectly flat, with tiny gaps present. The NF150-300 thermal pad material is soft and elastic, allowing it to fully fill these irregular surface gaps, minimizing thermal resistance and ensuring efficient heat transfer.
▪ Outstanding Electrical Insulation Performance: In precision electronic devices like industrial cameras, the electrical insulation of materials is crucial. The NF150-300 thermal pad material also possesses excellent electrical insulation properties, with a breakdown voltage greater than or equal to 6 kV/mm, effectively preventing short circuits and ensuring safe and reliable operation of the equipment.
▪ Wide Temperature Range and Environmental Adaptability: Industrial environments are complex and variable. The NF150-300 thermal pad material maintains stable thermal conductivity and mechanical properties across a wide temperature range of -40℃ to 200℃. It remains unaffected by humidity, dust, and other harsh conditions, ensuring stable operation of industrial cameras in various working conditions.

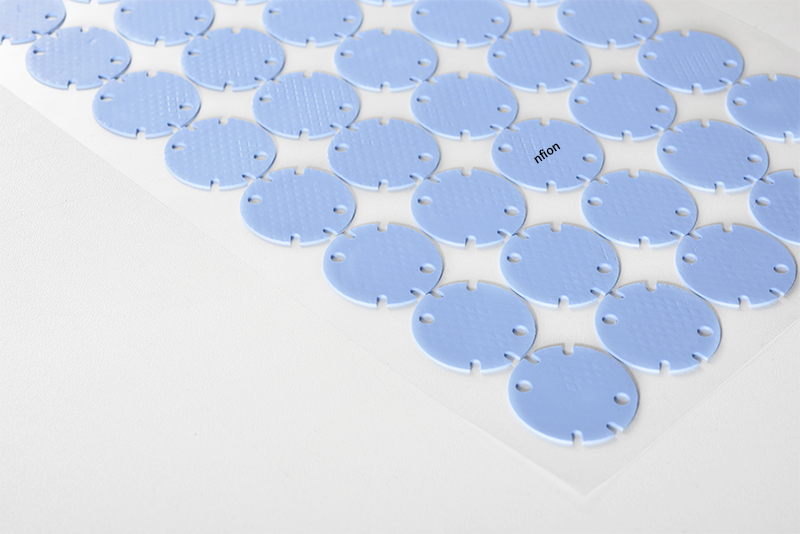

▪ Easy to Install and Maintain: This thermal pad material can be custom-cut to fit the internal structure of the camera and the dimensions of heat sources. It's easy to install without additional curing, reducing assembly difficulty and maintenance costs.
Application Scenarios: NF150-300 Ensures Stable Operation of Industrial Cameras
The NF150-300 thermal pad material is widely used in industrial cameras, including but not limited to:
▪ Image Sensor Heat Dissipation: Directly applied to the back of CMOS/CCD image sensors to transfer heat to the casing or heat dissipation structure.
▪ Processor/FPGA Heat Dissipation: Covering high-performance processor chips such as CPUs, GPUs, and FPGAs inside the camera to ensure their stable operation.
▪ Power Module Heat Dissipation: Effectively lowering the operating temperature of the camera's internal power modules, improving power efficiency and lifespan.
By adopting the NF150-300 thermal pad material, industrial camera manufacturers can significantly enhance the thermal efficiency of their products, thereby improving camera performance stability, extending lifespan, and ultimately boosting the overall reliability of industrial automation systems. This not only helps businesses reduce maintenance costs but also ensures the continuous and efficient operation of production lines, providing a solid guarantee for the advancement of intelligent manufacturing.
Choosing the right thermal material is key to solving heat dissipation problems in industrial cameras. The NF150-300 thermal pad material, with its exceptional overall performance, is undoubtedly a powerful option for industrial camera thermal solutions. Is your industrial camera also facing heat dissipation challenges? Consider the NF150-300 to ensure high temperatures no longer bottleneck industrial camera performance.
