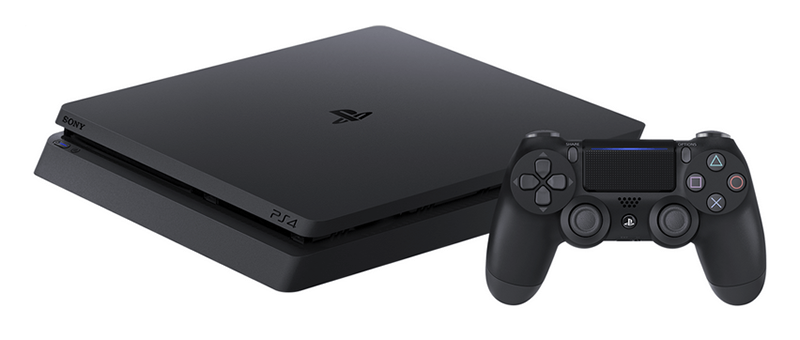

As electronic devices become increasingly powerful, overheating has become a more common issue, particularly in gaming consoles. The PS4, as a high-performance gaming console, relies on its CPU and GPU, which generate a significant amount of heat under prolonged high loads. Without proper cooling, this heat buildup can negatively impact gaming performance and reduce the device’s lifespan. Combining thermal pads and thermal grease provides an ideal solution to the PS4's heat management challenges.
Causes and Impact of Overheating in PS4
The PS4 houses a powerful CPU and GPU capable of handling complex graphics and computations. When running demanding games, these components operate under heavy loads, generating considerable heat. If this heat isn’t effectively dissipated, it can lead to:
1. Throttling: When temperatures exceed safe limits, the PS4 system automatically lowers processor frequencies to control heat generation, which impacts gaming smoothness.
2. System Crashes or Freezing: Prolonged overheating may lead to hardware failure, causing game crashes or even freezing.
3. Reduced Lifespan: Continuous high-temperature operation accelerates component aging, shortening the PS4’s overall lifespan.
Thus, improving the PS4's cooling capabilities is essential.
Comparison of Thermal Pad and Thermal Grease Properties
When selecting cooling materials, thermal pads and thermal grease are both common options with distinct properties and advantages.

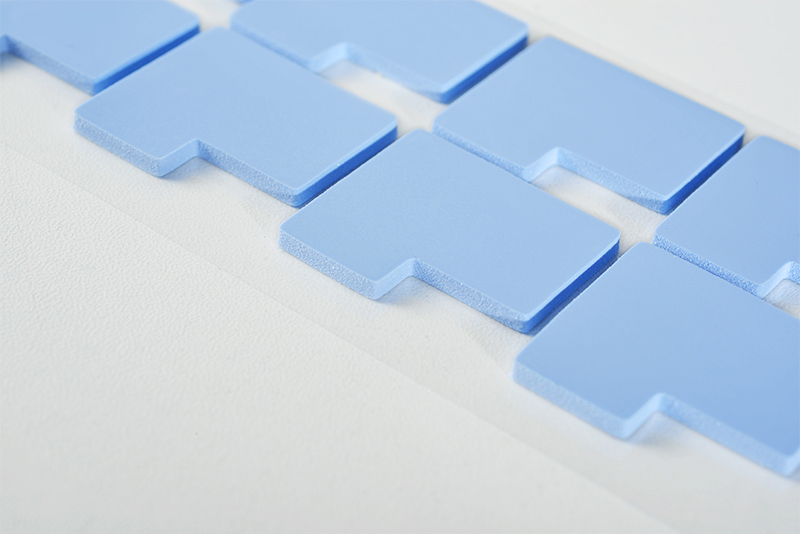

1. Thermal Pads
Thermal pads are solid materials with soft, elastic qualities, allowing them to fill gaps between components and heat sinks effectively. Key characteristics include:
● High Thermal Conductivity: Thermal pads have high thermal conductivity, enabling rapid heat transfer from heat-generating components to heat sinks.
● Gap-Filling Capability: Due to their softness, thermal pads can fill gaps of varying shapes and heights between components, reducing thermal resistance caused by air pockets.
● Excellent Insulation: Thermal pads generally offer good insulation, making them safe to use near sensitive electronic components.
● Reusable: Thermal pads are stable and long-lasting, retaining their performance even under high temperatures without degradation or migration.

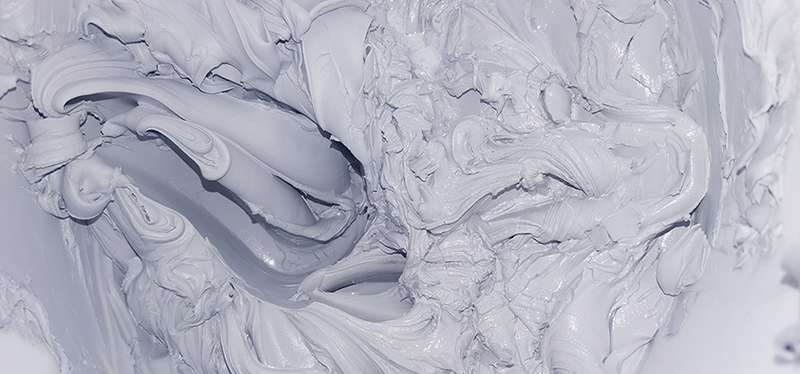

2. Thermal Grease
Thermal grease, a semi-fluid material, is suited for filling tiny gaps, often applied between CPUs or GPUs and heat sinks. Its features include:
● High Flowability: Thermal grease’s excellent flowability enables it to fill tiny surface irregularities, ensuring close contact between heat-generating components and heat sinks.
● High Thermal Efficiency: Thermal grease is highly conductive and quickly transfers heat to heat sinks, enhancing cooling efficiency.
● Cost-Effective: Compared to thermal pads, thermal grease is more economical and offers good value for performance.
In summary, thermal pads are ideal for larger gaps, while thermal grease fills microscopic gaps. Together, they form a comprehensive thermal pathway in the PS4, optimizing cooling performance.
Application of Thermal Pads and Thermal Grease in PS4
In the PS4, thermal pads and thermal grease are applied to different heat-generating components and heat sinks to achieve efficient cooling.
1. Application of Thermal Pads

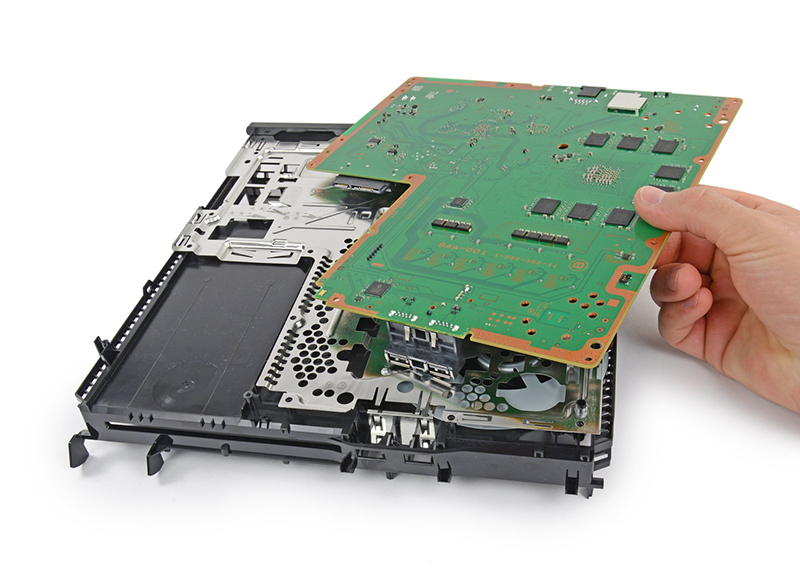

Thermal pads are applied to components like the GPU chip and power modules on the PS4 motherboard. Since there’s a significant distance between these components and the heat sink, thermal pads can effectively fill these spaces and create a thermal pathway.
● Between the GPU and the Motherboard: The PS4’s graphics chip (GPU) is a major heat source, and using thermal pads can help transfer this heat to the heat sink, ensuring stable GPU performance.

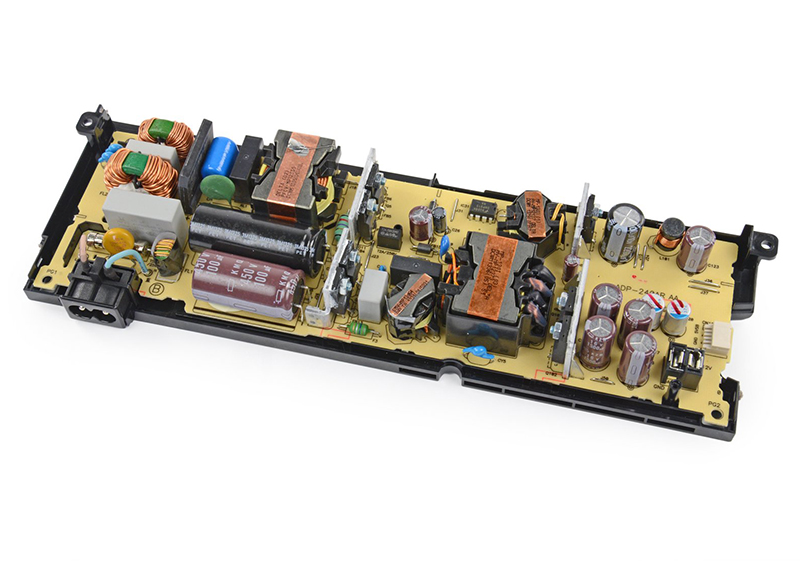

● Power Modules: The PS4’s power modules also generate substantial heat under load. Thermal pads can fill the gap between the power modules and the heat sink, allowing efficient heat transfer.
2. Application of Thermal Grease
Thermal grease is typically applied between the PS4’s CPU and GPU and their respective heat sinks, ensuring a tight bond and improving heat transfer efficiency.
● Between CPU and Heat Sink: The PS4’s CPU is another high heat-producing component. Thermal grease fills the tiny gaps between the CPU surface and the heat sink, reducing thermal resistance for effective heat transfer.
● Between the GPU and Heat Sink: Some PS4 models have minimal gaps between the GPU and the heat sink. The excellent flowability of thermal grease makes it suitable for this location, enhancing thermal conductivity.
By using thermal pads and thermal grease appropriately, a complete thermal pathway is formed from heat-generating components to the heat sink, achieving optimal cooling.
Collaborative Effects of Thermal Pads and Thermal Grease
In the PS4, thermal pads and thermal grease work together to significantly enhance cooling efficiency, with the following benefits:
1. Improved Cooling Efficiency: The different characteristics of thermal pads and thermal grease maximize their effectiveness in various gaps, reducing thermal resistance and improving overall cooling performance.
2. Reduced Temperature Peaks: By optimizing the thermal pathway, thermal pads and thermal grease help lower temperature peaks, preventing throttling and enhancing gaming experience.
3. Extended Device Lifespan: Effective cooling reduces component operating temperatures, slowing the aging process and extending the PS4’s lifespan.
Conclusion
The combination of thermal pads and thermal grease offers a reliable solution to PS4’s overheating issues. Thermal pads fill larger gaps, while thermal grease fills microscopic ones, creating a complete thermal pathway. This not only enhances cooling efficiency but also reduces temperature peaks and prolongs device lifespan. When facing the high-temperature challenges of devices like the PS4, selecting appropriate thermal materials and designing an efficient cooling strategy are key to solving overheating issues.
