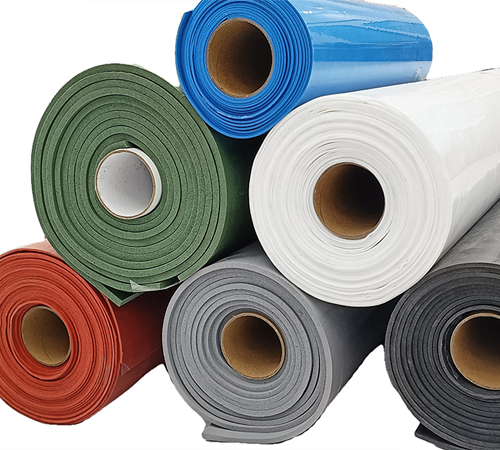

NF150-788 is a liquid silicone foam elastomer developed for thermal insulation, cushioning, and electrical insulation between battery cells in new energy vehicle (NEV) power batteries.

Featuring a fine and uniform closed-cell structure, the material combines excellent compression recovery with low thermal conductivity, high volume resistivity, and UL94 V-0 flame retardancy. It helps accommodate the expansion and contraction of battery cells during charge-discharge cycles while providing effective cushioning, electrical insulation, and thermal protection.

NF150-788 also offers excellent resistance to compression set and low stress relaxation, enabling stable performance over a recommended operating temperature range of -55°C to 200°C.

The material is self-adhesive on both sides and protected with PET release liners, allowing direct peel-and-stick installation without additional adhesive lamination. It is supplied in roll format with a standard width of 1 m and length of 30 m, making it suitable for efficient slitting, die-cutting, and continuous converting processes.

Excellent Flame Retardancy
UL94 V-0 flame rating provides reliable flame-retardant protection for battery and electronic applications.

Low Thermal Conductivity
Thermal conductivity ≤0.12 W/(m·K), helping reduce heat transfer between adjacent battery cells.

Wide Operating Temperature Range
Recommended for continuous use from -55°C to 200°C, with intermittent exposure up to 280°C for 30 minutes.

Excellent Electrical Insulation
Volume resistivity >1×10¹⁴ Ω·cm and dielectric strength ≥3 kV/mm provide effective electrical isolation.

Low Compression Set
Compression set ≤5% after aging at 150°C for 168 hours, helping maintain material thickness during long-term service.

Low Stress Relaxation
Stress relaxation <15% after aging at 150°C for 168 hours, supporting stable compression force under long-term operating conditions.

Excellent Fatigue Resistance
Thickness change remains below 2% after one million dynamic compression cycles, with no cracking or damage.

Low Water Absorption
Water absorption ≤3%, supporting use in high-humidity environments.

Double-Sided Self-Adhesive Design
Integrated low-tack adhesive surfaces with PET release liners simplify positioning and assembly without secondary adhesive lamination.

RoHS & REACH Compliant
Meets RoHS and REACH environmental compliance requirements.

Roll Format for Efficient Converting
Standard 1 m × 30 m roll format supports efficient slitting and die-cutting with high material utilization.

NEV Power Battery Cells
Used as compression and thermal insulation pads between prismatic battery cells to accommodate cell expansion while providing cushioning, electrical insulation, and thermal protection.
Battery Module Cushioning
Installed between battery cells and module structures to absorb vibration, compensate for assembly tolerances, and provide cushioning protection.
Electrical Enclosure Sealing
Suitable for sealing, dust protection, vibration damping, and cushioning in outdoor electrical equipment.
Electronic Device Protection
Used for impact absorption, cushioning, and thermal protection of PCBs and sensitive electronic components.
